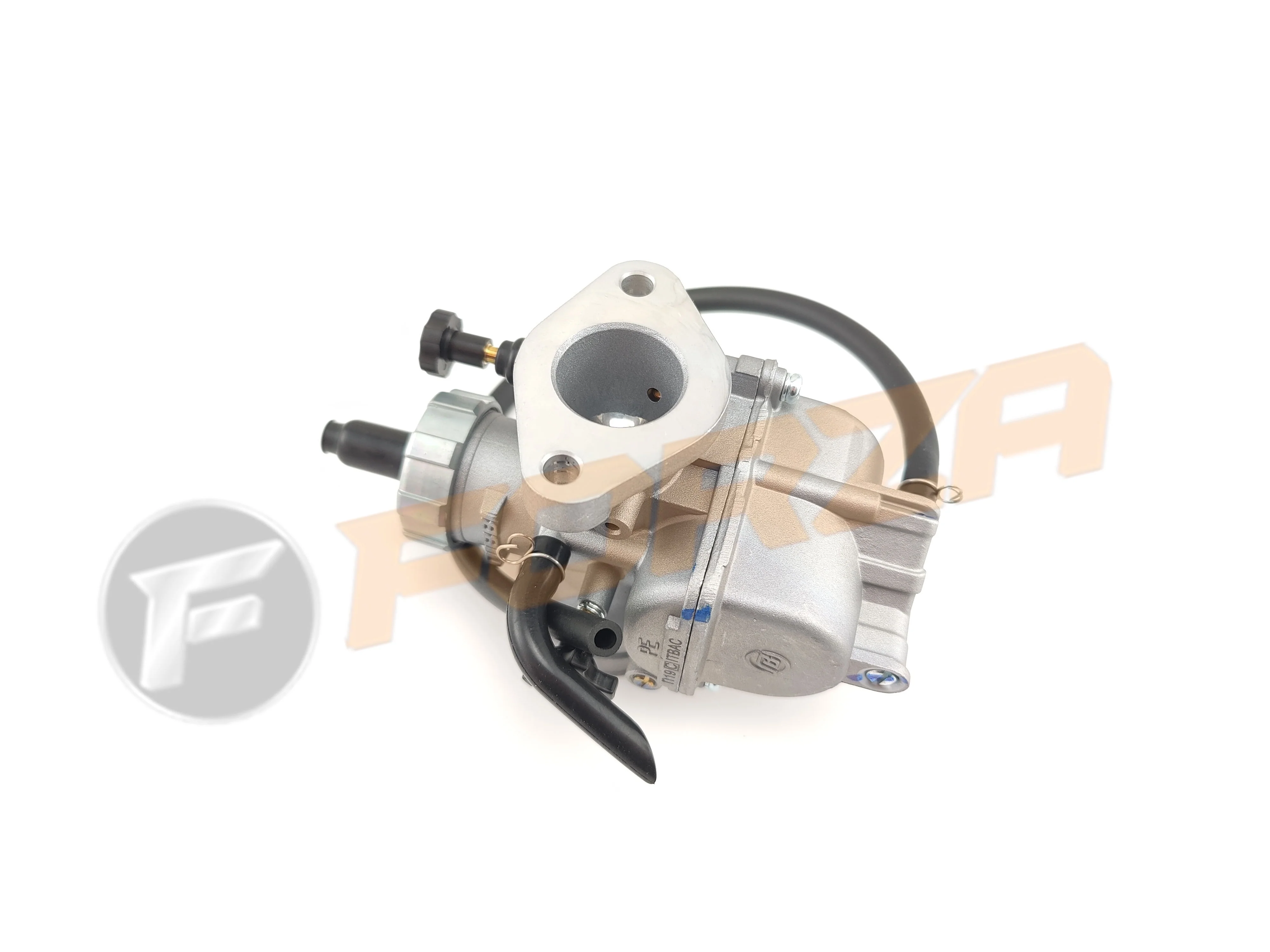

FORZA FMX 125 Carburettor - Nibbi PE19 (Main Jet Size 92/Pilot Jet Size 32)

Specs:

-Outside diameter of the air filter joint part is about 45mm

-Distance between mounting holes (from center to center) is about 48mm

-Inside diameter of the throttle lift is about 22mm



Originally for

FORZA FMX125 2021 - NOW

FORZA FMX140 2021 - NOW

FORZA FMX140R 2021 - NOW

FORZA FMX140BF 2021 - NOW



also fits

FORZA FMX125L, FMX125, FMX140, FMX140R, FMX140BF 2008 - 2020 (need to upgrade to 42mm air filter and throttle cable).



It may also fit other Chinese pit bikes like Thumpstar 125cc 140cc (need to upgrade to 42mm air filter and throttle cable). It may also fit Honda CRF50-type engines like LIFAN 125, or YX125.



FBLCN: C - 32 & RF - A - ROW - 3
